DESCRIPTION
These small attack submarines were built in France specifically for sale to Pakistan, except the Ghazi, which was purchased from Portugal in 1975.

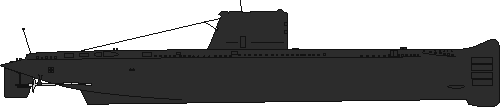

The submarines have a double-hull design with a flat outer hull casing, except for the sonar dome bulge at the bow. They are powered by two SEMT-Pielstick 12PA4-135 diesels. The submarines have been fitted with the Sub-Harpoon anti-ship missile, which is fired from torpedo tubes. The rear firing tubes are externally loaded and cannot be accessed from inside the boat.
STATUS
All 4 submarines are in active service. The Ghazi replaced the ex-US Tench (SS 417)-class submarine (DIABOLO/ SS 479) of the same name that was sunk while attempting to torpedo the Indian aircraft carrier Vikrant during the 1971 Indo-Pakistani War. These submarines were the only units of the Pakistani Fleet to offer substantial resistance to the Indian Navy in the 1971 Indo-Pakistani War. On 9 December 1971 the Hangor torpedoed and sank the Indian frigate Khukri off the coast of West Pakistan.
These submarines are to be replaced by Agosta 90B class of submarines currently under construction in France and Pakistan.
BUILDER(S)
Hangor - Arsenal de Brest
Shushuk, Mangro - C.N. Ciotat, Le Trait
Ghazi - Dubigeon, Normandy (Nates)
DAPHNE'S COMBAT SYSTEMS
Ship List | ||||
Pennant | Name | Launched |
Commissioned |
Status |
S 131 | Hangor | 06-28-1969 | 01-12-1971 | Active |
S 132 | Shushuk | 07-30-1969 | 01-12-1971 | Active |
S 133 | Mangro | 02-07-1970 | 08-08-1972 | Active |
S 134 | Ghazi | 09-23-1968 | 10-01-1976 | Active |
Daphne stats | ||
Dimensions | Length | 57.8 m |
Beam | 6.8 m | |
Drought | 4.5 m | |
Displacement | Standard | 700 tons |
Surface | 869 tons | |
Submerged | 1043 tons | |
Endurance | 45 days | |
Accomodaion | Sailors | 50 |
Proplusion | Shafts | 2 |
Diesel engines | 2 x 2,448 bhp | |
Electric motors | 2 x 2,600 shp | |
Performance | Speed submerged | 16 kts |
Speed surfaced | 13.5 kts | |
Diving depth | 300 m (985 ft) | |
Range snorkling | 4300 nm at 7.5 kts | |
Tubes | 12 | |
Armament | Torpedoes | L5 |
Missiles | SGM-84 Sub-Harpoon | |
Mines | Stonefish | |
Total carried | 12 |
